Guildstone Configurations

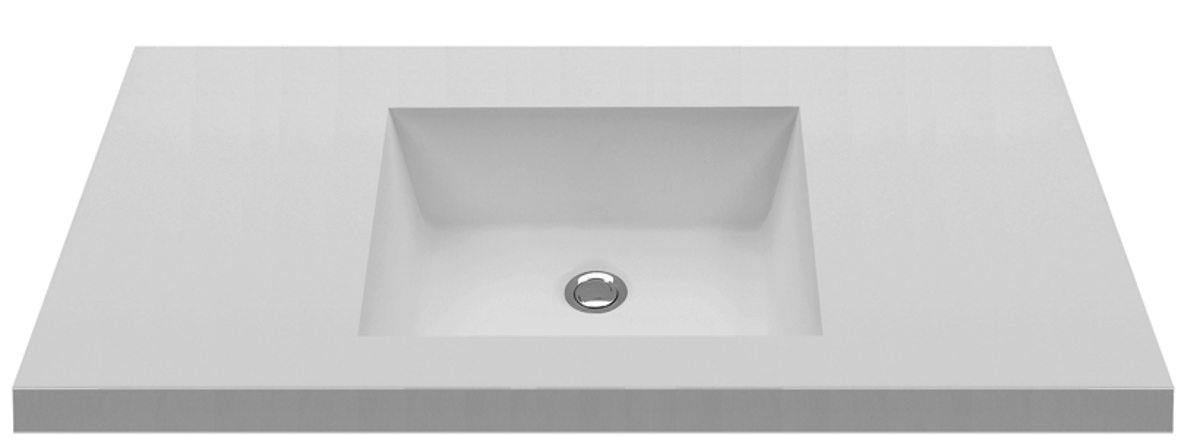

GSR1 Configuration
- 15 1/2" x 14" x 4 3/4"
- Standard Slot overflow in the front
- Minimum countertop width is 21"
- Minimum countertop depth is 21 /4" leaving 3" for deck mount faucets
Available Sizes
- GSR1
Preview:
GSR1
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/c6a9325aefc04a3fb50c574d321084f1-gsr1.jpg?width=1200)

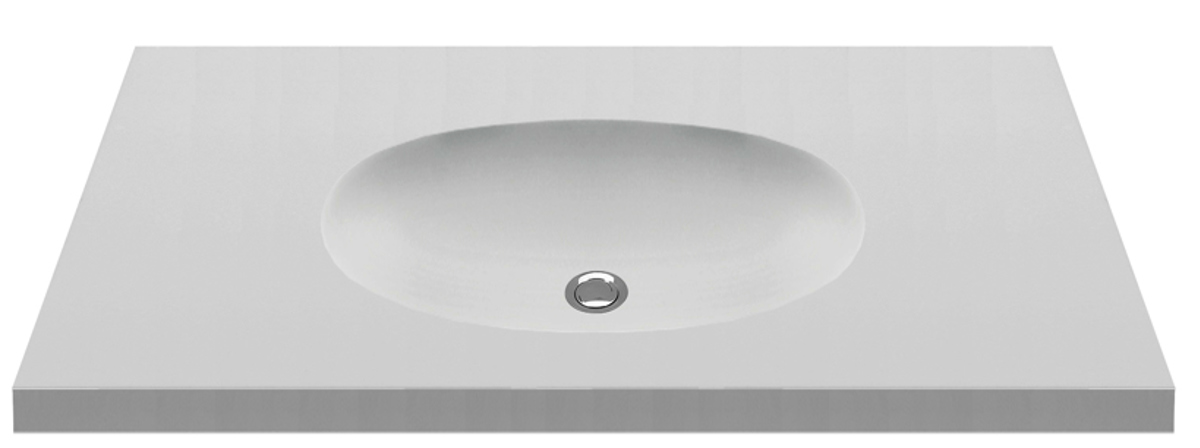

GSO1 Configuration
- 20" x 14" x 5"
- Standard round overflow in the front
- Minimum countertop width is 24"
- Minimum countertop depth is 20.5" leaving 3" for deck mount faucets
Available Sizes
- GSO1
Preview:
GSO1
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/139f7e4f29ab4b6898b777409d5575a8-gso1.jpg?width=1200)

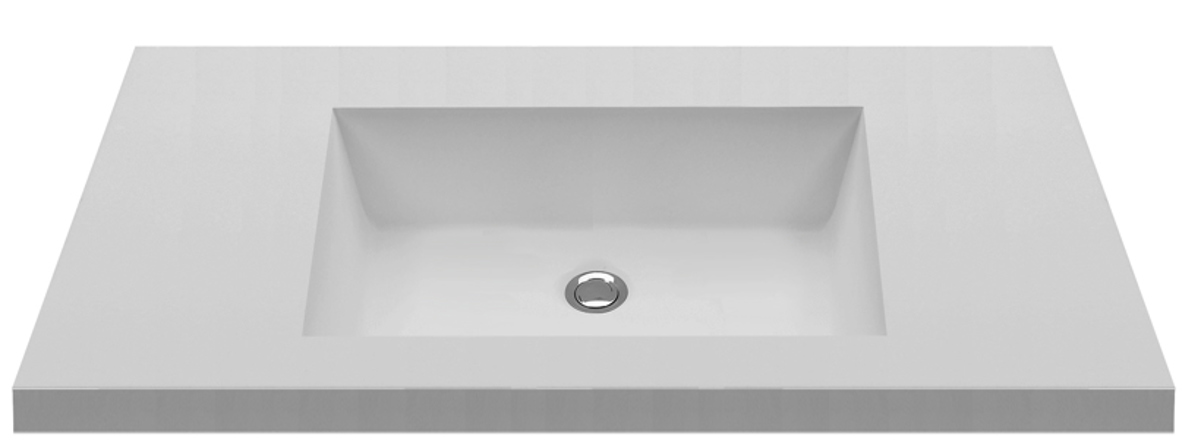

GSR2 Configuration
- 20.25" X 12.5" X 4 3/4"
- Standard slot overflow in the front
- Minimum countertop width is 26"
- Minimun countertop depth is 19.75" leaving 3" for deck mount faucets
- Works on 18"D with wall mount faucet
Available Sizes
- GSR2
Preview:
GSR2
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/31e0c64dff0d4fdd85ff720ebeac0273-gsr2.jpg?width=1200)
GSR3 Configuration
- 15 1/8" x 10 1/4" x 4 3/4"
- Designed for COM compact depth 18"D countersinks
- Standard slot overlfow in the front
- Minimum countertop width is 21"
- Minimum countertop depth:
- 18 1/8" leaving 4" deck mount faucet
- 15 7/8" for wall mount facuet
Available Sizes
- GSR3
Preview:
GSR3
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/d2da3e0869cc4ebab499129e309f62f0-gsr3.jpg?width=1200)

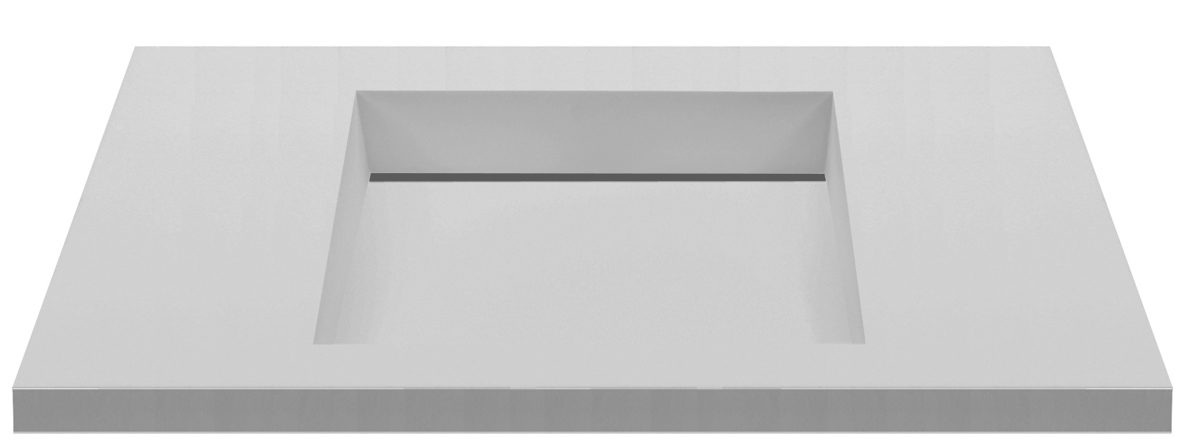

ASCENT2 Configuration
- 19" x 13" x 3 3/4"
- Slot drain with drain pan underneath
- Drain is included
- Standard slot overflow in the back
- Minimum countertop width is 24"
- Minimum contertop depth is 19.75"
- $400 upcharge
Available Sizes
- ASCENT2
Preview:
ASCENT2
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/f2266623c1b4422ebbf46eac040fb8a4-guildstone-countersink-ascent2.jpg?width=1200)

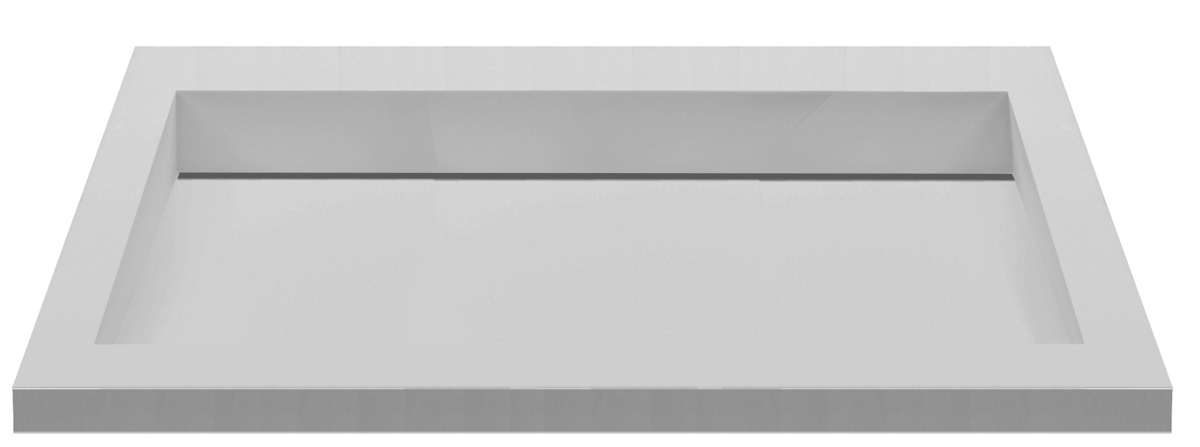

ASCENT48 Configuration
- 40" x 13" 3.75"
- Slot drain with drain pan underneath
- Drain is included
- Single drain - use 01/05/06 configurations
- Standard slot overflow in back
- Minimum countertop width is 48"
- Minimum contertop depth is 19.75"
- $550 upcharge
Available Sizes
- ASCENT48
Preview:
ASCENT48
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/c71df5619bed4d3092b7f4acb8892994-guildstone-countersink-ascent48.jpg?width=1200)

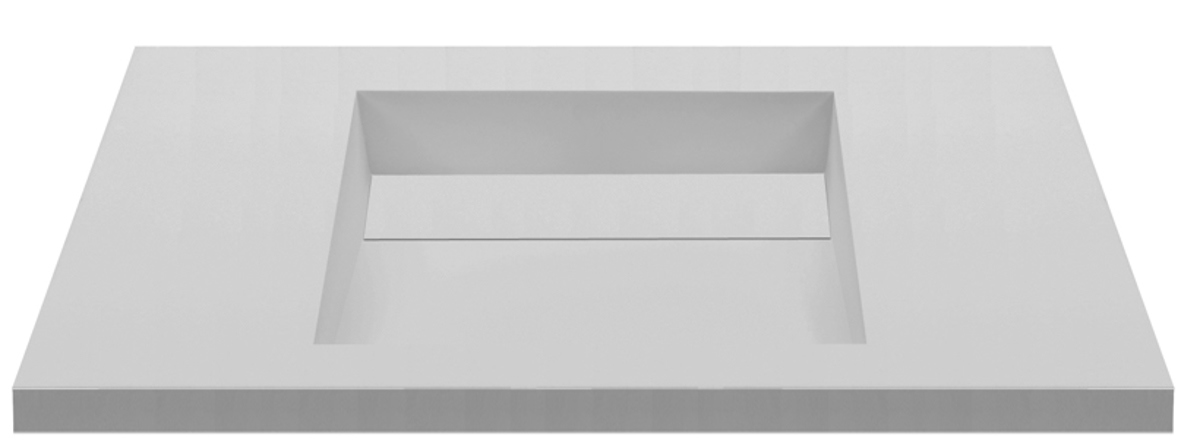

RAMP24 Configuration
- 18 7/8" x 14 5/8" x 5"
- Includes removable drain cover
- Standard slot overflow in the front
- Minimum countertop width is 24"
- Minimum countertop depth is 21 5/8"
Available Sizes
- RAMP24
Preview:
RAMP24
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/6824eb619f9d47469a6793beaf54631f-ramp24.jpg?width=1200)

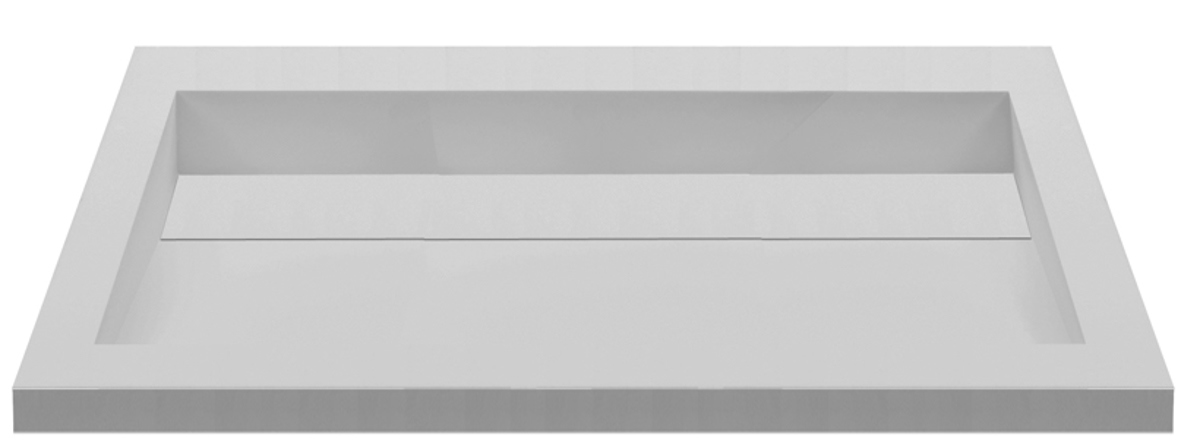

RAMP40 Configuration
- 34" x 14 1/8" x 4 1/2"
- Includes removable drain cover
- Single drain - use 01/05/06 configurations
- Standard slot overflow in the front
- Minimum countertop width is 40"
- Minimum countertop depth is 21 5/8"
Available Sizes
- RAMP40
Preview:
RAMP40
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/0779ff634f5744f3871a4de80f7bbd87-ramp40.jpg?width=1200)

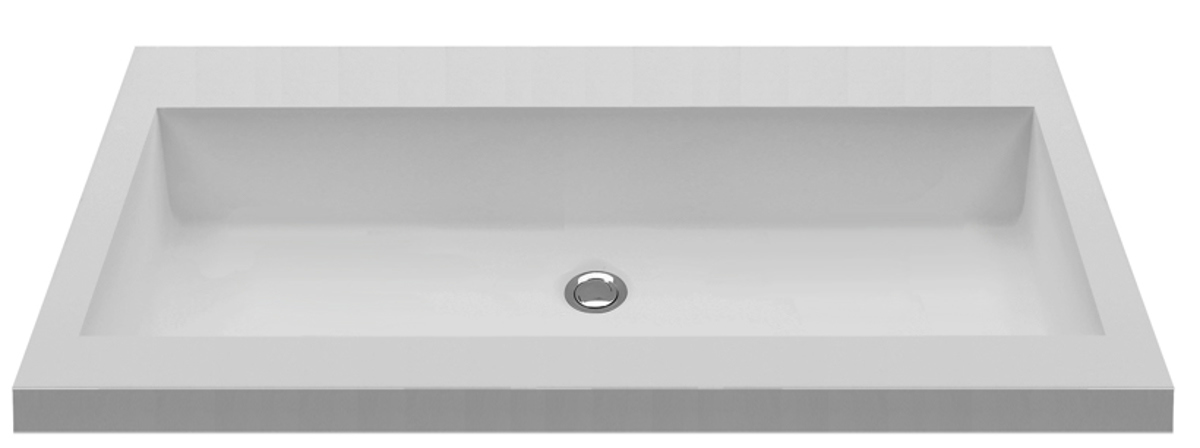

TROUGH48 Configuration
- Single drain in the center - use 05/06 single sink configurations
- Standard slot overflow in the front
- Minimum countertop width is 48"
- Minimum countertop depth is 19.5"
- Mulitple faucet placements - please specify:
- faucet code for (2) single hole faucets = 2X1
- faucet code for (2) triple hole faucets = 2X3
Available Sizes
- TROUGH48
Preview:
TROUGH48
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/4abc78e5bcd64b589a10d51eb2d9982a-trough48.jpg?width=1200)
TROUGH54 Configuration
- Single drain in the center - use 05/06 single sink configurations
- Standard slot overflow in the front
- Minimum countertop width is 54"
- Minimum countertop depth is 19.5"
- Mulitple faucet placements - please specify:
- faucet code for (2) single hole faucets = 2X1
- faucet code for (2) triple hole faucets = 2X3
Available Sizes
- TROUGH54
Preview:
TROUGH54
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/d9a6fba3972d45d6918c39cdbc32a50d-trough54.jpg?width=1200)
TROUGH60 Configuration
- Single drain in the center - use 05/06 single sink configurations
- Standard slot overflow in the front
- Minimum countertop width is 60"
- Minimum countertop depth is 19.5"
- Mulitple faucet placements - please specify:
- faucet code for (2) single hole faucets = 2X1
- faucet code for (2) triple hole faucets = 2X3
Available Sizes
- TROUGH60
Preview:
TROUGH60
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/6e5e898b2485428980079e7649e7d34b-trough60.jpg?width=1200)
TROUGH72 Configuration
- Single drain in the center - use 05/06 single sink configurations
- Standard slot overflow in the front
- Minimum countertop width is 72"
- Minimum countertop depth is 19.5"
- Mulitple faucet placements - please specify:
- faucet code for (2) single hole faucets = 2X1
- faucet code for (2) triple hole faucets = 2X3
Available Sizes
- TROUGH72
Preview:
TROUGH72
![](https://tfgwebcdnprod.azureedge.net/assets/sizes/139d668ed6714296bf3111e73ac43834-trough60.jpg?width=1200)
