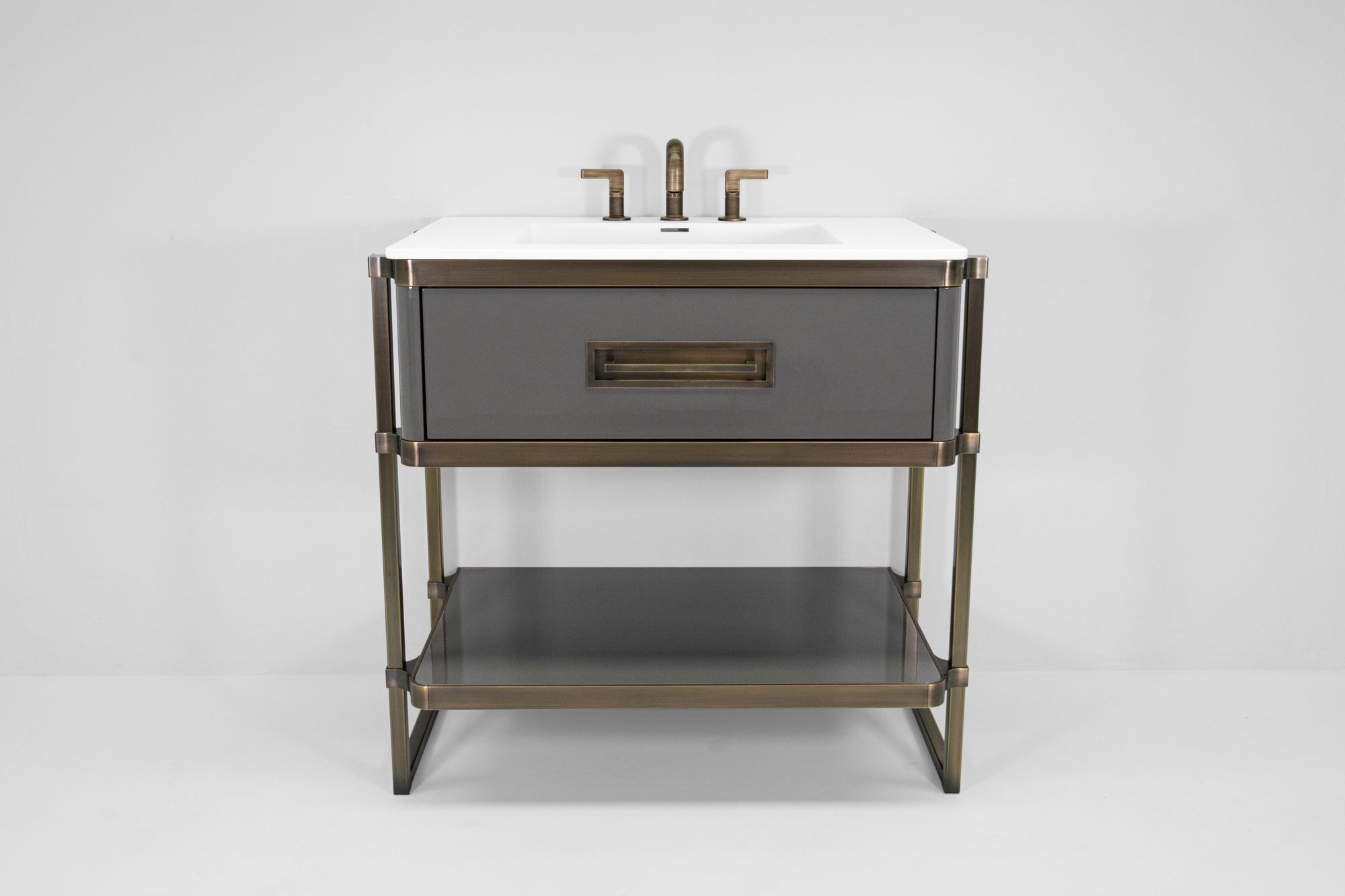

Liam - 522

Guildstone has been designed and engineered to resist scratches and stains when used properly. Its hard, non-porous surface prevents dirt from accumulating and resists stains better than other materials.

With normal use, Guildstone will retain its beautiful look with only a minimal amount of care and cleaning.

To keep your Matte Guildstone countersink looking elegant and beautiful, follow these steps:

• Use common household, non-abrasive cleaners or mild soapy water
• Remove dust or dry dirt with a damp soft cloth
• Do not use harsh chemicals or sharp objects that might scratch the surface

Guildstone has been designed and engineered to resist scratches and stains when used properly. Its hard, non-porous surface prevents dirt from accumulating and resists stains better than other materials.

With normal use, Guildstone will retain its beautiful look with only a minimal amount of care and cleaning.

To keep your Matte Guildstone countersink looking elegant and beautiful, follow these steps:

• Use common household, non-abrasive cleaners or mild soapy water
• Remove dust or dry dirth with a damp soft cloth
• Do not use abrasive, gritty, or harsh chemical cleaners and avoid sharp objects that might scratch the surface

Guildstone is a solid surface material made from ground natural materials, 60% organic in fact. It is very durable, easy to clean and non-porous. To achieve our pristine matte finish, we sand these countersinks by hand. This provides a soft touch, and little-to-no reflectivity, making it a great accent to all types of cabinet finishes.

Care and maintenance

• Clean with a magic eraser, clorox wipes or soap and water
• Light scratches can be removed with 180 grit sandpaper

Our gloss finish is polished by hand to a perfect finish. We don't use any top coat material which is likely to yellow over time. Because Guildstone is solid throughout, it can be polished over and over again making it the ultimate material for bathroom countertops.

Thin is in! Guildstone with our 0.5 edge thickness is a great choice for a clean, minimal look. While not available on all designs, the 0.5 edge is quickly becoming one of our most popular countersink selections.

GSR1 sink is our standard sink shape for guildstone. At 15 1/2" wide it fits well in small countertops while providing adequate counterspace.

• 15 1/2" x 14" x 4 3/4"
• Standard Slot overflow in the front
• Minimum countertop width is 21"
• Minimum countertop depth is 21 1/4" leaving 3" for deck mount faucets

GSO1 sink is our standard oval sink shape for guildstone. Its symmetric design with centered drain adds a softer touch to our guildstone countersink.

• 20" x 14" x 5"
• Standard round overflow in the front
• Minimum countertop width is 24"
• Minimum countertop depth is 20.5" leaving 3" for deck mount faucets

GSR2 sink is our premium rectangle sink shape for guildstone. At 20 1/4" wide its large enough for most master bathroom applications.

• 20 1/4" x 12 1/2" x 4 3/4"
• Standard Slot overflow in the front
• Minimum countertop width is 26"
• Minimum countertop depth is 19.75" leaving 3" for deck mount faucets
• Works on 18"D with wall mount faucet

GSR3 sink is our standard sink shape for 18" compact depth guildstone applications. At 10 1/4" deep it fits perfectly in an 18" deep countertop.

• 15 1/8" x 10 1/4" x 4 3/4"
• Designed for COM compact depth 18" countersinks
• Standard Slot overflow in the front
• Minimum countertop width is 21"
• Minimum countertop depth is 18 1/8" leaving 4" for deck mount faucets
• Minimum countertop depth is 15 7/8" for wall mount faucet applications

RAMP24 sink is our includes a sloped ramp style sink bottom and drain cover that covers a 4" collection area at the back. Its a more contemporary design with a hidden drain. Drain cover removes easily for cleaning.

• 18 7/8" x 14 5/8" x 5"
• Standard Slot overflow in the front
• Minimum countertop width is 24"
• Minimum countertop depth is 21 5/8" leaving 3" for deck mount faucets

RAMP40 sink is our larger ramp style sink. Like the smaller RAMP24, RAMP40 includes a hidden drain and drain cover at the back of the sink. At 34" wide it works well as a large sink or can also be drilled with 2 faucet hole sets for a compact double application.

• 34" x 14 1/8" x 4 1/2"
• Includes removable draincover
• Single drain - Use 01/05/06 vanity configurations
• Standard Slot overflow in the front
• Minimum countertop width is 40"
• Minimum countertop depth is 21 5/8"

TROUGH48 sink is our smallest trough style sink shape for guildstone. At 40" wide, it can be used in single or double faucet applications.

• 40" x 12 3/4" x 4 5/8"
• Standard Slot overflow in the front
• Single drain in the center - Use 05/06 vanity configurations
• Minimum countertop width is 48"
• Minimum countertop depth is 19 1/2" leaving 3" for deck mount faucets
• Multiple Faucet Placement - Please specify hole locations
• Faucet code for (2) single hole faucets is 2x1
• Faucet code for (2) widespread faucets is 2x3
• Custom hole drilling is available

TROUGH54 sink is our most popular trough style sink shape for guildstone as it provides adequate counterspace on a 60" vanity. At 46 1/2" wide, it can be used in single or double faucet applications.

• 46 1/2" x 12 3/4" x 4 5/8"
• Standard Slot overflow in the front
• Single drain in the center - Use 05/06 vanity configurations
• Minimum countertop width is 54"
• Minimum countertop depth is 19 1/2" leaving 3" for deck mount faucets
• Multiple Faucet Placement - Please specify hole locations
• Faucet code for (2) single hole faucets is 2x1
• Faucet code for (2) widespread faucets is 2x3
• Custom hole drilling is available

TROUGH60 sink is a popular trough style sink shape for guildstone. At 52 1/2" wide, it can be used in single or double faucet applications.

• 52 1/2" x 12 3/4" x 4 5/8"
• Standard Slot overflow in the front
• Single drain in the center - Use 05/06 vanity configurations
• Minimum countertop width is 60"
• Minimum countertop depth is 19 1/2" leaving 3" for deck mount faucets
• Multiple Faucet Placement - Please specify hole locations
• Faucet code for (2) single hole faucets is 2x1
• Faucet code for (2) widespread faucets is 2x3
• Custom hole drilling is available

Add a drain cover to any of our guildstone sink shapes. Drain covers hide the drain and provide a cleaner look.

• 1/2" thick with 1/8" reveal around perimeter of sink
• Doesn't interfere with popup drains
• Removable for cleaning
• Reduces sink depth by approx 1"

With a rich history and traditional charm, our Carrara Marble will brings sophistication to any space. Our Carrara marble is hand polished and sealed for use as a countertop. It has a white to light gray background with grey veining. There are no two slabs of marble that have exactly the same pattern which makes our Carrara Marble a truly unique, one-of-a-kind selection.

• 17 1/4" x 13 1/8" - cutout is 16 5/8" x 12 5/8"
• Fully compatible with:
  • 100/200 Series
  • 402 Avalon
  • 410 Tempo
  • 433 Turino
  • 434 Touro
  • 470 Verso Tall
  • 490 Sydney
  • 491 Melbourne
  • 510 Sophia
  • 610 Winston
  • 615 Alton
  • 620 Avant
  • 621 Avento
• Requires a 2.0 minimum edge:
  • 406 Riva
  • 415 Angolo
  • 420 Revo
  • 430 Fresco
  • 435 Brianna
  • 436 Corrado
  • 480 Verso Short
  • 504/505 Josie

Installation Instructions

• 13" x 10" - cutout is 12 3/8" x 9 3/8"
• For Compact Depth 18"D vanities
• Fully compatible with:
  • 100/200 Series
  • 402 Avalon
  • 410 Tempo
  • 433 Turino
  • 434 Touro
  • 470 Verso Tall
  • 490 Sydney
  • 491 Melbourne
  • 510 Sophia
  • 610 Winston
  • 615 Alton
  • 620 Avant
  • 621 Avento
• Requires a 2.0 minimum edge:
  • 406 Riva
  • 415 Angolo
  • 420 Revo
  • 430 Fresco
  • 435 Brianna
  • 436 Corrado
  • 480 Verso Short
  • 504/505 Josie

Installation Instructions

The ultimate material selection for a matte, fingerprint resistant countersink. Water drains to the perimeter of the drain cover before finding its way to the stainless drain pan hidden underneath. This top includes an overflow.

Thin is in! Fenix with our 0.5 edge thickness is a great choice for a clean, minimal look. While not available on all designs, the 0.5 edge is quickly becoming one of our most popular countersink selections.

FSR1 sink is our standard sink shape for Fenix. At 16" wide it fits well in small countertops while providing adequate counterspace.

• 16" x 13" x 4 3/4"
• Standard Slot overflow in the front
• Minimum countertop width is 21"
• Minimum countertop depth is 19.5" leaving 3" for deck mount faucets

FSR2 sink is our premium rectangle sink shape for Fenix countersinks. At 21" wide its large enough for most master bathroom applications.

• 21" x 13" x 4 3/4"
• Standard Slot overflow in the front
• Minimum countertop width is 26"
• Minimum countertop depth is 19.5" leaving 3" for deck mount faucets

FSR3 sink is our standard sink shape for 18" compact depth Fenix Countersink applications. At 10 1/4" deep it fits perfectly in an 18" deep countertop.

• 16" x 10 1/4" x 4 3/4"
• Designed for COM compact depth 18" countersinks
• Standard Slot overflow in the front
• Minimum countertop width is 21"
• Minimum countertop depth is 18 1/8" leaving 4" for deck mount faucets
• Minimum countertop depth is 15 7/8" for wall mount faucet applications

TROUGH48 sink is our smallest trough style sink shape for Fenix Countersinks. At 40" wide, it can be used in single or double faucet applications.

• 40" x 13" x 4 3/4"
• Standard Slot overflow in the front
• Single drain in the center - Use 05/06 vanity configurations
• Minimum countertop width is 48"
• Minimum countertop depth is 19 1/2" leaving 3" for deck mount faucets
• Multiple Faucet Placement - Please specify hole locations
• Faucet code for (2) single hole faucets is 2x1
• Faucet code for (2) widespread faucets is 2x3
• Custom hole drilling is available

TROUGH54 sink is our most popular trough style sink shape for Fenix as it provides adequate counterspace on a 60" vanity. At 46 1/2" wide, it can be used in single or double faucet applications.

• 46" x 13" x 4 3/4"
• Standard Slot overflow in the front
• Single drain in the center - Use 05/06 vanity configurations
• Minimum countertop width is 54"
• Minimum countertop depth is 19 1/2" leaving 3" for deck mount faucets
• Multiple Faucet Placement - Please specify hole locations
• Faucet code for (2) single hole faucets is 2x1
• Faucet code for (2) widespread faucets is 2x3
• Custom hole drilling is available

Guildcrete is a natural cast stone product. Expect some variation in color and texture. Over time, expect some wear and patina to occur as the product ages.

Care and Maintenance:

• Clean your Guildcrete surface with mild soap and water or a non-abrasive cleaner
• Do not use any harsh chemicals or abrasive cleaners
• While stain resistant, wipe up any liquids to reduce the chance of staining or etching
• Guildcrete is factory sealed with a durable clearcoat slealer. Avoid using sharp objects.

Guildcrete is a natural cast stone product. Expect some variation in color and texture. Over time, expect some wear and patina to occur as the product ages.

Care and Maintenance:

• Clean your Guildcrete surface with mild soap and water or a non-abrasive cleaner
• Do not use any harsh chemicals or abrasive cleaners
• While stain resistant, wipe up any liquids to reduce the chance of staining or etching
• Guildcrete is factory sealed with a durable clearcoat slealer. Avoid using sharp objects.

Guildcrete is a natural cast stone product. Expect some variation in color and texture. Over time, expect some wear and patina to occur as the product ages.

Care and Maintenance:

• Clean your Guildcrete surface with mild soap and water or a non-abrasive cleaner
• Do not use any harsh chemicals or abrasive cleaners
• While stain resistant, wipe up any liquids to reduce the chance of staining or etching
• Guildcrete is factory sealed with a durable clearcoat slealer. Avoid using sharp objects.

CAMP1-SB Campaign Inlay #1 option shown here in Satin Brass on a 294-0030 Hannah in B41 French Walnut with Guildstone Countersink in Matte White with matching SQCAP-SB square cap feet in Satin Brass. Also shown, CBAR1-SB-INLINE Campaign Bar Pull #1 inline with inlay on drawers which are ordered separately. Faucet courtesy of Watermark. Campaign Inlay #1 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with slotted screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with slotted screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from permimeter
• Projection of inlay is 1/16", projection of corner is 3/16"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

*add image of split finish

Campaign Inlay #1 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with slotted screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with slotted screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from permimeter
• Projection of inlay is 1/16", projection of corner is 3/16"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

CAMP2-SB Campaign Inlay #2 option shown here in Satin Brass over C40 White Fenix. Campaign #2 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with knurled screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with knurled screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from perimeter
• Projection of inlay is 1/16", projection of corner with knurled screw is 3/8"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

*add image of split finish

Campaign Inlay #2 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with knurled screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with knurled screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from perimeter
• Projection of inlay is 1/16", projection of corner with knurled screw is 3/8"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

CAMP2-MB Campaign Inlay #2 option shown here in Matte Black on a 406-0136 Riva in C62 Truffle with Fenix Countersink in Black and MB2-3607-MB Metal Base in Matte Black. Also shown, 3x CBAR2-MB-INLINE Campaign Bar Pull #2 inline with inlay which are ordered separately. Campaign Inlay #2 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with knurled screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with knurled screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from perimeter
• Projection of inlay is 1/16", projection of corner with knurled screw is 3/8"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

*add image of split finish

CAMP2-SB Campaign Inlay #2 option shown here in Satin Brass on a 405-0130 Avalon in C28 Lunar Gray Acrylic with Guildstone Countersink in White Gloss and MB4-3014-SB Metal Base in Satin Brass. Also shown, 2x CBAR2-SB-INLINE Campaign Bar Pull #2 inline with inlay which are ordered separately. Campaign Inlay #2 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with knurled screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with knurled screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from perimeter
• Projection of inlay is 1/16", projection of corner with knurled screw is 3/8"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

*add image of split finish

CAMP2-SB Campaign Inlay #2 option shown here in Satin Brass on a 405-0548 Avalon in C29 Graystone Acrylic with Guildstone Countersink in White Gloss and 405-LC-1665 matching linen tower. Both pieces shown also include CBAR2-SB-INLINE Campaign Bar Pull #2 inline with inlay which are ordered separately. Campaign Inlay #2 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with knurled screw detail. Faucet courtesy of Watermark.

Ordering info:

• Includes 1/4" Inlay and decorative corners with knurled screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from perimeter
• Projection of inlay is 1/16", projection of corner with knurled screw is 3/8"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

*add image of split finish

CAMP1-SB-MB-SB Campaign Inlay #1 option shown here in split finish over B42 Granite Walnut. For split finish coding replace single finish code with [Inlay Finish] - [Corner Finish] - [Screw Finish]. Campaign Inlay #1 includes a 1/4" standard inlay spaced 1" from the perimeter and includes decorative corners with slotted screw detail.

Ordering info:

• Includes 1/4" Inlay and decorative corners with slotted screws
• Pulls shown are not included and must be ordered separately
• Changes door design to slab door with 1/4" inlay spaced 1" from permimeter
• Projection of inlay is 1/16", projection of corner is 3/16"
• Solid Brass
• Group 1 Finishes
  • SB Satin Brass
  • AB Antique Brass
  • MB Matte Black
  • OC Oil Can
• Group 2 Finishes
  • BB Burnished Brass
  • PN Polished Nickel
  • SN Satin Nickel
  • PC Polished Chrome

Options for Campaign Inlay
Split finish - Change single finish code to [Inlay Finish] - [Corner Finish] - [Screw Finish]

Glass dividers for a full drawer or a drawer with a scooped back for plumbing. Glass dividers fit below scoop on bottom sink drawers.

Ordering info:

• 2 1/2"H x 1/4" thick glass divider walls running front to back
• 3 1/4" spaces between each divider
• Glass dividers can be removed to create larger spaces
• Glass is removable for cleaning
• Please specify drawer assignment when ordering
• 12" Full drawer = 2 dividers
• 15" Full drawer = 3 dividers
• 18" Full drawer = 4 dividers
• 21" Full drawer = 5 dividers
• 24"+ Full drawer = 6 dividers

*number of dividers could change based on design selected

Four heavy glass jars with wood surround for separating and storing small accessories in a drawer.

Ordering info:

• Require Glass Dividers
• Designed to fit into spaces between glass dividers
• Can be moved to different positions
• Removable for easy cleaning
• Wood surround is finished to match the drawer

Insert for storing and organizing make-up.

Ordering info:

• Require Glass Dividers
• Designed to fit into spaces between glass dividers
• Can be moved to different positions
• Removable for easy cleaning
• Finished to match the drawer

Protect sensitive small items by adding our leather insert to your glass dividers. These inserts can be moved to different positions in a drawer featuring our glass dividers. Suede comes in gray when added to a Gray drawer and comes in Beige when added to a Wood Dovetailed Drawer.

Ordering info:

• Require Glass Dividers
• Designed to fit into spaces between glass dividers
• Can be moved to different positions
• Removable for easy cleaning
• Glass Dividers and Glass Jar insert shown not included

Protect sensitive larger items by adding our leather insert to your glass dividers. These inserts can be moved to different positions in a drawer featuring our glass dividers. Suede comes in gray when added to a Gray Legrabox drawer and comes in Beige when added to a Wood Dovetailed Drawer.

Ordering info:

• Require Glass Dividers
• Designed to fit into spaces between glass dividers
• Remove 1 glass divider to create larger space for this insert
• Can be moved to different positions
• Removable for easy cleaning
• Glass Dividers and Glass Jar insert shown not included

LED lighting for exterior of a vanity or linen tower.

Ordering info:

• 3000K warm white led to accent the space below a vanity
• LED housing has an anodized aluminum finish
• Includes switch but can be wired to a wall switch by electrician
• Requires non-switched electrical outlet to be placed 25"H and 6" from right side of the vanity
• Up to 96" single run of LED lighting

Order this option if you want to have dimming capability on your Exterior LED accent light.

Ordering info:

• Eliminates switch normally included with EXTLT
• Upgrades standard transformer to a electronic dimmable transformer
• Requires 24" switched power whip placed 25"H above finished floor, 6" from right side of vanity.
• Compatible with any standard MLV/CL (Triac) forward phase dimmer switch (not included)
• Requires purchase of EXTLT Exterior LED light

Add a Gloss top coat to any of our painted finishes.
